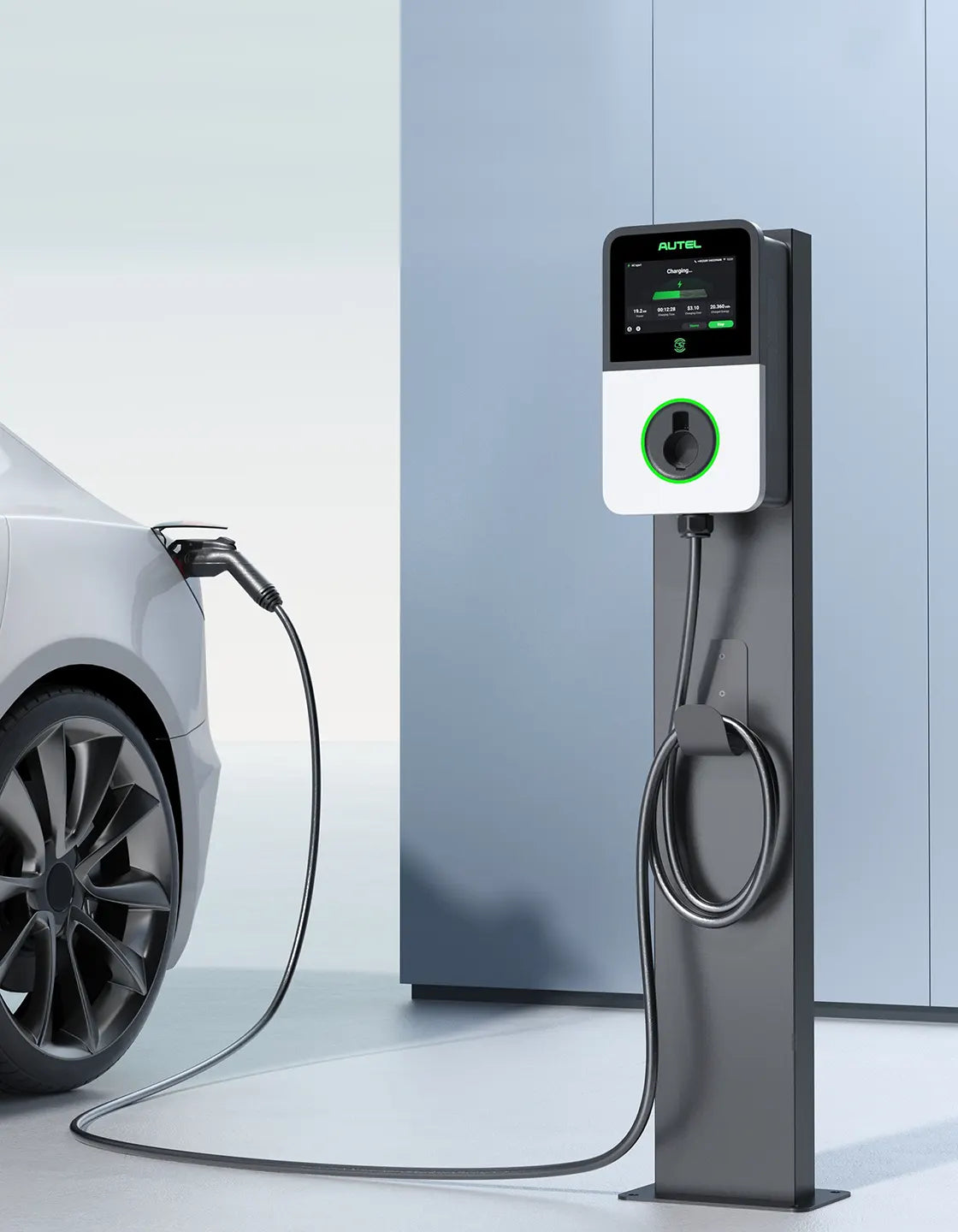

MaxiCharger AC Pro

80A Fast AC Charger

ac_pro_image_1120x1440.webp__PID:a60faa9f-c191-4a6d-9bfa-ace682194cc8
ac_pro_image_1120x1440.webp__PID:a60faa9f-c191-4a6d-9bfa-ace682194cc8
ac_pro_image_1120x1440_02.png__PID:ccad1bb2-b368-4e48-ade2-424a7a745610
ac_pro_image_1120x1440_03.png__PID:ad1bb2b3-680e-48ad-a242-4a7a7456102e
ac_pro_image_1120x1440_04.png__PID:1bb2b368-0e48-4de2-824a-7a7456102ed4

Charge up Your Drive, Power up Your Journey.

MaxiCharger AC Pro is the ultimate blend of power and cost efficiency in AC charging solutions that is perfect for destination and fleet charging scenarios.

The MaxiCharger AC Pro operates at 19.2 kW AC with a maximum output of 80A, achieving a 70-mile range in just one hour, ensuring efficient charging and quick turnaround. Reliability is our hallmark, with a commitment to excellence in hardware, software, and communication design to deliver consistent and dependable charging experiences. Featuring intelligent vehicle and configuration recognition, dynamic power allocation, and versatile power configurations, it meets diverse charging needs, ultimately enhancing station revenue.

Request Pricing

Maximum Output Power

Up to 19.2 kw

Maximum Current

Up to 80 A

Input/Output Voltage

208/240 V

ac_pro_numbered_1267x950.jpg__PID:a1ee6e13-4793-47cb-9c51-6860deaf12a5
  • Energy Pulse Output (Infrared Ray)
  • Ambient Light Sensor - Detects Ambient Brightness
  • Touchscreen
  • RFID Reader
  • Holster
  • Top Entries
  • Bottom Entries
ac_pro_fast_charging_icon.png__PID:9fdf3bf8-bd45-4dde-b896-778b59ac529b

Fast Charging

  • Achieve high performance with a power output of 19.2 kW and a maximum current of 80A.
  • Delivering future-proof charging capabilities, achieving a 70-mile range in just one hour.
ac_pro_fast_reliable_icon.png__PID:a250e547-9350-49c7-b21b-2fcf08ad2788

Reliable

  • Ensuring higher uptime through a modular product design and redundant WiFi and Wisun networks.
  • Features a 16-point monitoring and warning protection system that intelligently identifies poor wiring connections.
ac_pro_intelligent_icon.png__PID:13657113-1ba7-45cb-982a-7085b7b65e23

Intelligent

  • Enable seamless wireless networking for up to 200 chargers, reducing site construction costs effectively.
  • Employ vehicle soc recognition technology for on-demand power allocation, enhancing grid efficiency and increasing site revenue by 25%.
  • Achieve dynamic load balancing within 1 second using power sharing technology, meeting future scalability needs.
ac_pro_friendly_icon.png__PID:9fa2a8f8-539c-41d4-a9d8-40d8998a9e1b

User-Friendly

  • Plug and Charge (PnC) and AutoCharge offer seamless authentication and payment without app downloads.
  • Utilize Click technology and wireless networking for a 10-minute installation, with batch configuration enabling station setup in an additional 10 minutes, resulting in significant reductions in overall installation time and costs.

Technical Specifications

Product Information

Input/output power rating and current

19.2kW (240V AC*80A)

Input/output voltage

208/240V AC 60Hz single phase

Input power connections

L1, L2, and Earth Ground

Input cord

Hardwired

Connector type

SAE J1772, NACS

Charging cable length

6.0m (19ft), Optional 7.5 m (25ft)

Ground fault detection

20mA CCID

Protection

Overcurrent, overvoltage, undervoltage, integrated surge protection

Card reader

ISO 15693, ISO 14443 A/B

Metering

CTEP Certified (Handbook 44, Section 3.40 Compliant) ANSI C12.20 (0.5%) compliant

General Characteristics

Enclosure rating

NEMA 3S, IK10

Operating altitude

3000m (9842ft)

Operating temperature range

-31°F~131°F (-35°C ~ +55°C) (Derate when above 113°F (45°C))

Storage temperature range

-40°F ~ +158°F (-40°C ~ +70°C)

Mounting

Wall or floor using a pedestal

Dimensions (HxWxD)

14.5 x 8.5 x 5.1 inch (368 x 216 x 130 mm)

Weight

9.4kg (With 6m charging cable)

Power efficiency

>0.99

User Interface

Status indication

LED / APP / LCD (7 inch touch screen, 800*480)

User interface

Autel Charge APP; Autel Charge Cloud; Third Party Cloud

Connectivity

4G (Optional), Wi-Fi, Ethernet, RS485 (Modbus, expand smart energy meter, etc.), Wisun

Communication protocols

OCPP 1.6J, OCPP 2.0.1

Current control method

APP, hardware DIP switch (Dial)

Software Update

Software update

OTA updates via web portal

Certification and Standard

Safety standards

UL 2594, UL 2231-1,
UL 2231-2, UL 1998, CSA C22.2. NO.280

Codes and standards

FCC Part 15 Class B, ENERGY STAR,
OpenADR 2.0b, NEC Article 625

Lifespan

10 years

Warranty

3 years (Extendable up to 5 years)

Mechanical Dimensions

ac_pro_mechanical_1120x879.png__PID:380c824c-8594-487f-9779-d3a9cd658ba9

Section One

learn more   buy now

Section Two

learn more

Section Three

learn more

Section Four

learn more

MaxiCharger

AC Pro

Turnkey EV charging solution for destination and fleet charging. Fast deployment with one­-click installation and streamlined commissioning in 8 minutes. Scale up charging network by smart load balancing with up to 200 chargers, PnC and V2G ready!  >

ctep-certified-278x278.webp__PID:ee302463-44ca-4ef6-9709-10050abce894

SMALL FOOTPRINT
HIGHEST POWER

HIGH POWER OUTPUT

  • Delivers up to 19.2 kW AC with a maximum current of 80A, enabling approximately 70 miles of range per hour of charging

RUGGED, SLEEK DESIGN

  • Features a NEMA 3S and IK10 rated enclosure, ensuring durability and protection against harsh environmental conditions and vandalism

USER-FRIENDLY INTERFACE

  • Equipped with a 7-inch high-definition touchscreen and an RFID reader for seamless user interaction and authentication

INTELLIGENT NETWORKING

  • Supports dual mesh networking through Wi-Fi and Wi-SUN, allowing reliable connections for up to 200 units with a 99.9% online rate

EFFICIENT INSTALLATION

  • Utilizes a one-click snap-in installation system, reducing setup time to approximately 8 minutes

ADVANCED ENERGY MANAGEMENT

  • Incorporates dynamic load balancing and vehicle state-of-charge recognition to optimize power distribution and enhance grid efficiency

FLEXIBLE MOUNTING OPTIONS

  • Can be mounted on a wall or pedestal, with an integrated connector dock to minimize tripping hazards and maintain a clean appearance

OCPP 1.6J, OCPP 2.0.1 COMPLIANT

  • Ensures compatibility with all major network providers

J1772, NACSCONNECTOR OPTIONS

Ideal for the Following Applications

dc-aio-retail-180x180.webp__PID:cb450636-72bf-4513-94d3-4a8a5e3b3fb5

Retail
Centers

dc-aio-fleets-180x180.webp__PID:7b8a52df-6e45-4e2b-b15b-8396a5f92d6f

Commercial
Fleets

dc-aio-highway-180x180.webp__PID:4a8a5e3b-3fb5-4cb4-81ec-9b8b7a8a1b5b

Highway
Services

dc-aio-commercial-180x180.webp__PID:9b8b7a8a-1b5b-4f16-b031-d7f9eedc88d5

Commercial
Parking

dc-aio-automotive-180x180.webp__PID:d7f9eedc-88d5-44e1-9d9b-f93bc08bf6d9

Automotive
Workshops

dc-aio-workplace-180x180.webp__PID:f93bc08b-f6d9-4aef-9415-7b8a52df6e45

Workplace
& Offices

MaxiCharger_AC_Pro_Image.webp__PID:3da92b9d-edd8-4687-bf18-c49ba41025a0

AC Pro Media & Resources

dc-aio-gallery-180x180.webp__PID:053c2942-4460-4e96-af4e-2ebd8fe320cc

Gallery

dc-aio-video-180x180.webp__PID:c8b8a238-e8fd-4441-af3e-6719b2f00119

Video
Library

dc-aio-manuals-180x180.webp__PID:f32e5360-8e9d-4040-b8de-f2789b42771d

Brochure
& Specs

dc-aio-news-180x180.webp__PID:545f4629-1f98-49d9-b1db-58b2fe6ccfab

Headline
News

dc-aio-blog-180x180.webp__PID:b0ed149b-153c-4e25-8aa3-2593a9ed4d70

Autel
Blog

dc-aio-contact-180x180.webp__PID:b3abdfa0-e277-4367-b6bc-1bdafaac3b5d

Stay In
Touch

AC PRO FRONT & SIDE VIEWS

AC PRO FRONT & SIDE VIEWS

AC_Pro_Gallery_2.png__PID:12fac691-4a4d-4cba-8f9c-6ab7b054fe32

AC PRO COMPONENT VIEWS

AC_Pro_Gallery_3.png__PID:2b657338-6679-4324-be96-cba7740368e7

AC PRO UNBOXING

AC_Pro_Gallery_4.png__PID:8b8d5f5e-e901-46c8-b62d-c121fb349dec

USING CHARGE APP WITH AC PRO

AC_Pro_Gallery_5.png__PID:df5ede46-f9dd-410f-8ee1-3929f5cf0933

INSTALLING AC PRO CHARGER

AC_Pro_Gallery_7.png__PID:438a8c8c-3c06-4a74-a1bf-3fb7ef231577

USING RFID CARD WITH AC PRO

FEATURES OF THE AC PRO

dc-aio-get-started-180x180.webp__PID:b1bcb9b8-6678-466c-80ea-c45ac54147dc

Get Started!

Provide your information, and we’ll get in touch with you to talk about your charging needs.
